5W1250H0-1XXT0WHUA01
Products Category
5W1250H0-1XXT0WHUA01

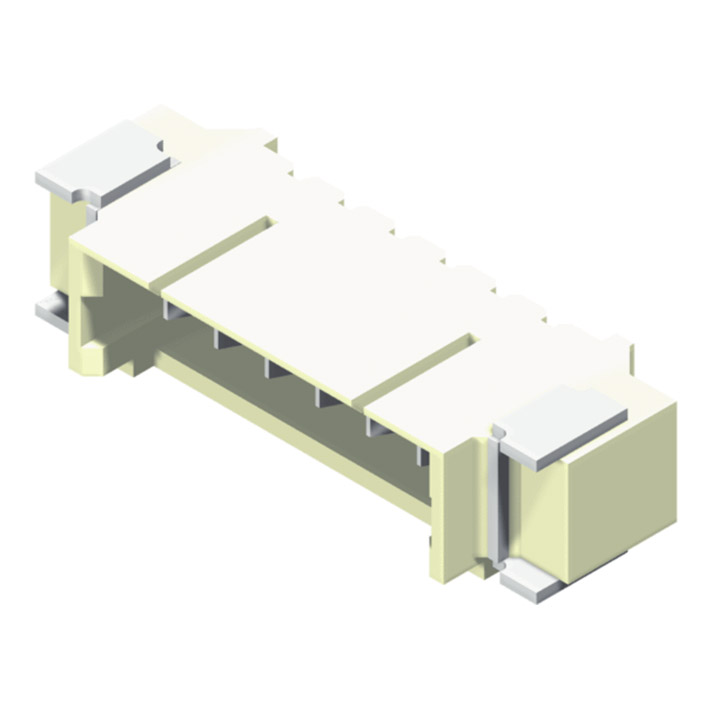

1250 Series 1.25mm Wafer SMT R/A Type
Specification:
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 500V AC/minute
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 500V AC/minute
Material
Material:Nylon 6T,UL94V-0
