5W1250G0-1XXT0WXUA01
Products Category
5W1250G0-1XXT0WXUA01

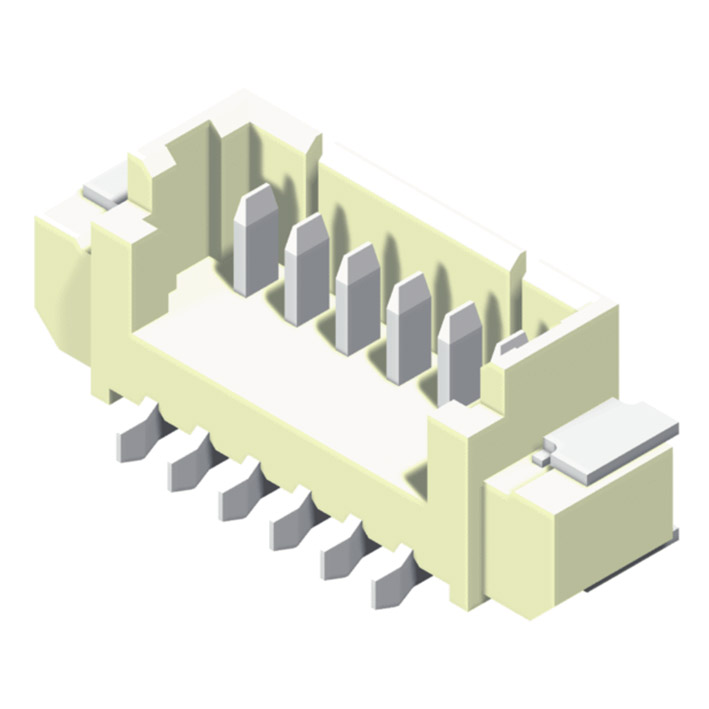

1250 Series 1.25mm Wafer SMT Straight Type
Specification:
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 500V AC/minute
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 500V AC/minute
Material
Material:Nylon 6T,UL94V-0
Pin Material:Copper Alloy
Solder Tabs:Copper Alloy
Cap:Nylon 6T,UL94-V
Pin Material:Copper Alloy
Solder Tabs:Copper Alloy
Cap:Nylon 6T,UL94-V
