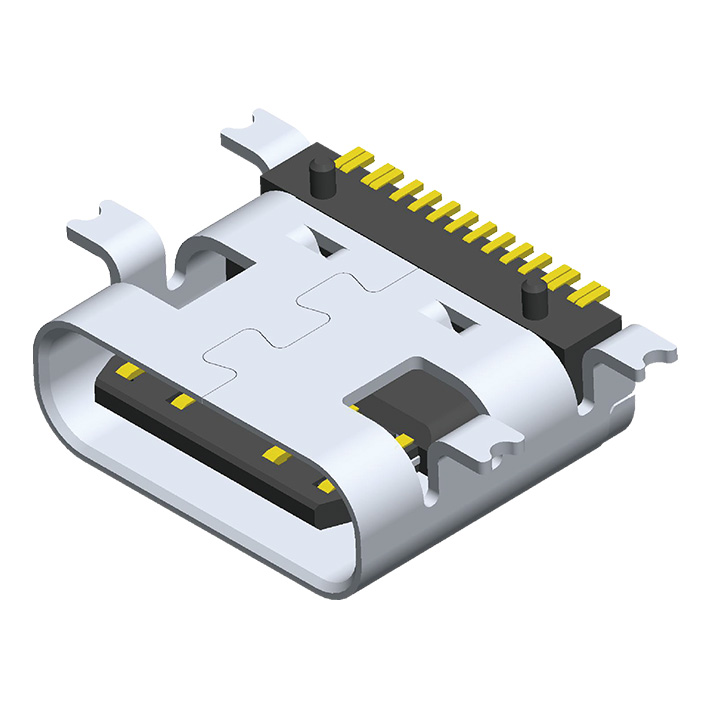

USB C FEMALE SMT R/A TYPE

CURRENT RATING: VBUS AND GND PIN 3.0A;
OTHER PIN 0.25A
CONTACT RESISTANCE: 40mΩ MAX(INITIAL). 50mΩ MAX (AFTER).
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 100 VAC / MINUTE
OPERATION TEMPERATURE: -40°C TO +85°C
DURABILITY: 10,000 CYCLES
MATING FORCE: 5N~20N.
UNMATING FORCE: 8N~20N. (AFTER TEST:6N~20N).
