5US4C02PM-124XXXUX41
Products Category
5US4C02PM-124XXXUX41

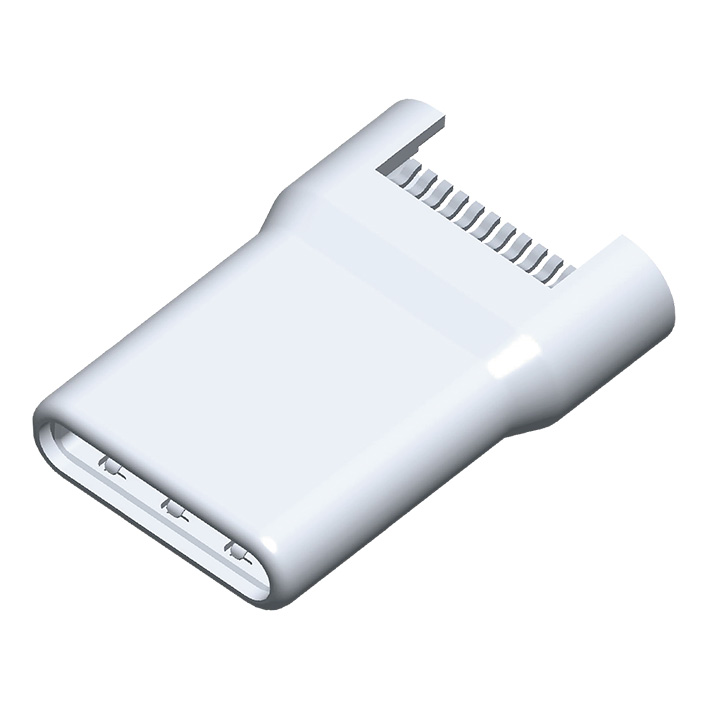

USB 3.1 C TYPE MALE WITH PCB BOARD TYPE
Specification:
Current Rating: 1.25A For A1,A12,B1,B12, 5A For A4,A9,B4,B9, 0.25A For Others
Withstanding Voltage: 100V AC R.M.S
Contact Resistance: 40mΩ Max
Insulotion Resistance: 100MΩ Min.
Operation Temperature: -30°C to +85°C
Durability: 10,000 cycles
Insertion Force : 5~20N
Extraction Force : 8~20N
Withstanding Voltage: 100V AC R.M.S
Contact Resistance: 40mΩ Max
Insulotion Resistance: 100MΩ Min.
Operation Temperature: -30°C to +85°C
Durability: 10,000 cycles
Insertion Force : 5~20N
Extraction Force : 8~20N
