5TP762R-3EDNXXXLX-01
Products Category
5TP762R-3EDNXXXLX-01

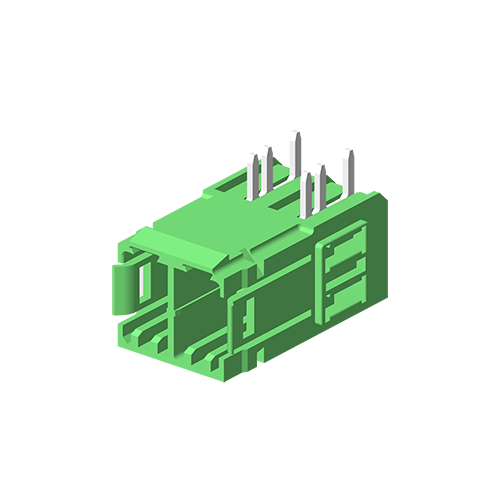

Pluggable Terminal Block 7.62mm Right Angle Type
Specification:
Material
Housing: PA66, UL94V-0
Contactor: Copper Alloy, Tin plated
Contactor: Copper Alloy, Tin plated
Mechanical
Standard: UL IEC
Rated Voltage: 300V 630V
Rated Current: 41A 41A
Withstanding Voltage: AC 1600V for one minute
Wire Range Solid/Standed: 24-8 AWG
Operating temperatur: -40°C to +105°C
