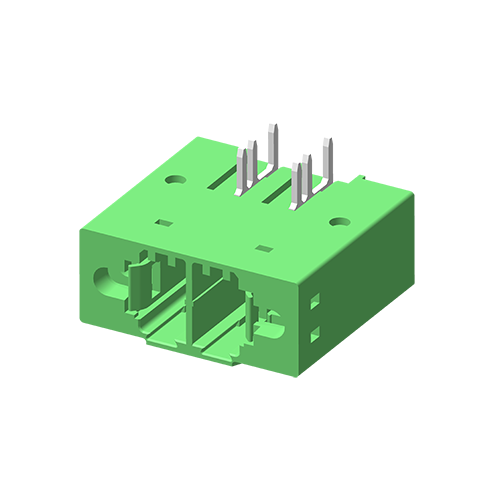

5TP762R-3EDEXXXLX-02

Pluggable Terminal Block 7.62mm Right Angle Type

Specification:

Material

Housing: PA66, UL94V-0
Contactor: Copper Alloy, Tin plated

Mechanical

Standard: UL IEC Rated Voltage: 300V 630V Rated Current: 41A 41A Withstanding Voltage: AC 1600V for one minute Wire Range Solid/Standed: 24-8 AWG Operating temperatur: -40°C to +105°C

Download Files

2D
3D
3D Model
