5MS3R41N-1XXXXBTU-0000-01
5MS3R41N-1XXXXBTU-0000-01

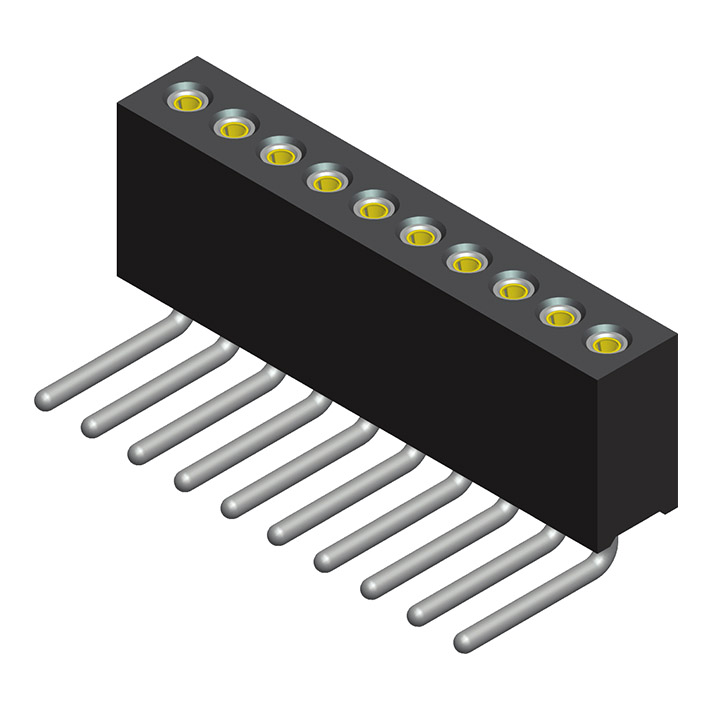

Machine Pin Socket 1.27mm Right Angle Type 1 Row
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ at V=100V Min.
Contact Resistance: 10mΩ/Contact Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Insulation Resistance: 1000MΩ at V=100V Min.
Contact Resistance: 10mΩ/Contact Max.
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Material
Insulator: Hi-Temp. Thermoplastic, UL94V-0
Contact Pin: Copper Alloy
Contact Pin: Copper Alloy
