5EH1ISDNN-XXXXXXG-00
5EH1ISDNN-XXXXXXG-00

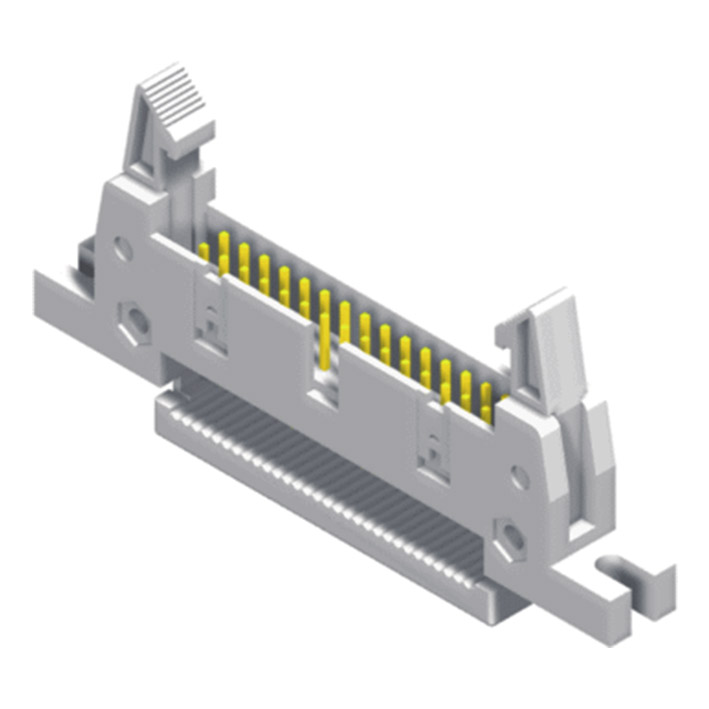

Ejector Header 2.54mm IDC Type
Specification:
Current Rating: 3 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperature: -25?C to +85°C
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 500V AC for one minute
Operation Temperature: -25?C to +85°C
Material
Insulator: PBT+30%GF, UL94V-0,Gray
Contact Pin: Brass
Contact Pin: Brass
