5BB061CXXM-XXXXUX-XX(01, 02)
5BB061CXXM-XXXXUX-XX(01, 02)

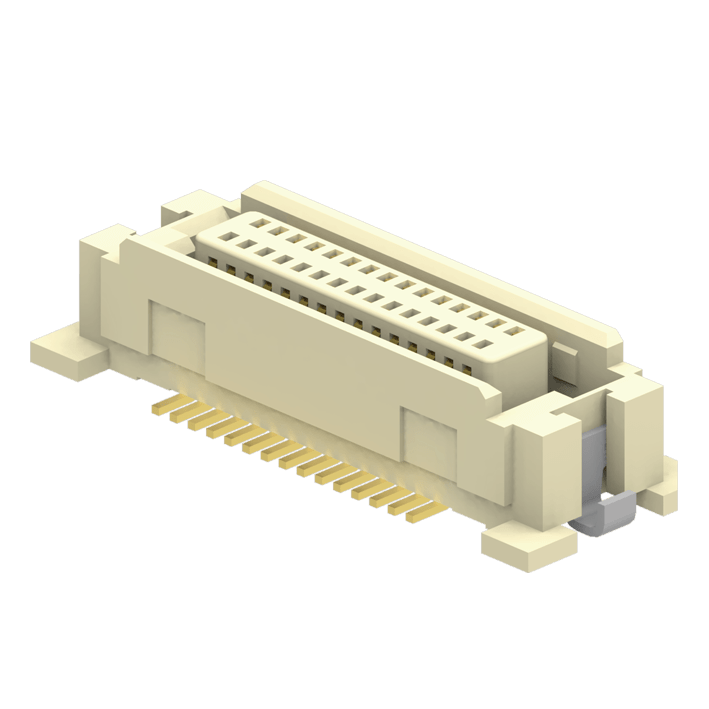

Board to Board 0.635mm Male H=4.0/10.0mm
Specification:
Current Rating: 0.5A
Contact Resistance: See Table 2
Insulator Resistance: 1000MΩ min.
Dielectric Voltage: 250V AC for one minute
Operating Temperature: -55° ~ +85°
Contact Resistance: See Table 2
Insulator Resistance: 1000MΩ min.
Dielectric Voltage: 250V AC for one minute
Operating Temperature: -55° ~ +85°
Material
Housing: LCP, UL94V-0
Contacts: Copper alloy
Fitting Nail: Brass, T=0.25mm.
Metal Cap: Stainless Steel, T=0.20mm
Flatness: ＜80 Pin the “M” is 0.12mm Max.
≧80 Pin the “M” is 0.15mm Max.
Contacts: Copper alloy
Fitting Nail: Brass, T=0.25mm.
Metal Cap: Stainless Steel, T=0.20mm
Flatness: ＜80 Pin the “M” is 0.12mm Max.
≧80 Pin the “M” is 0.15mm Max.
