57MDDRXA-XXXXXXXX-01
Products Category

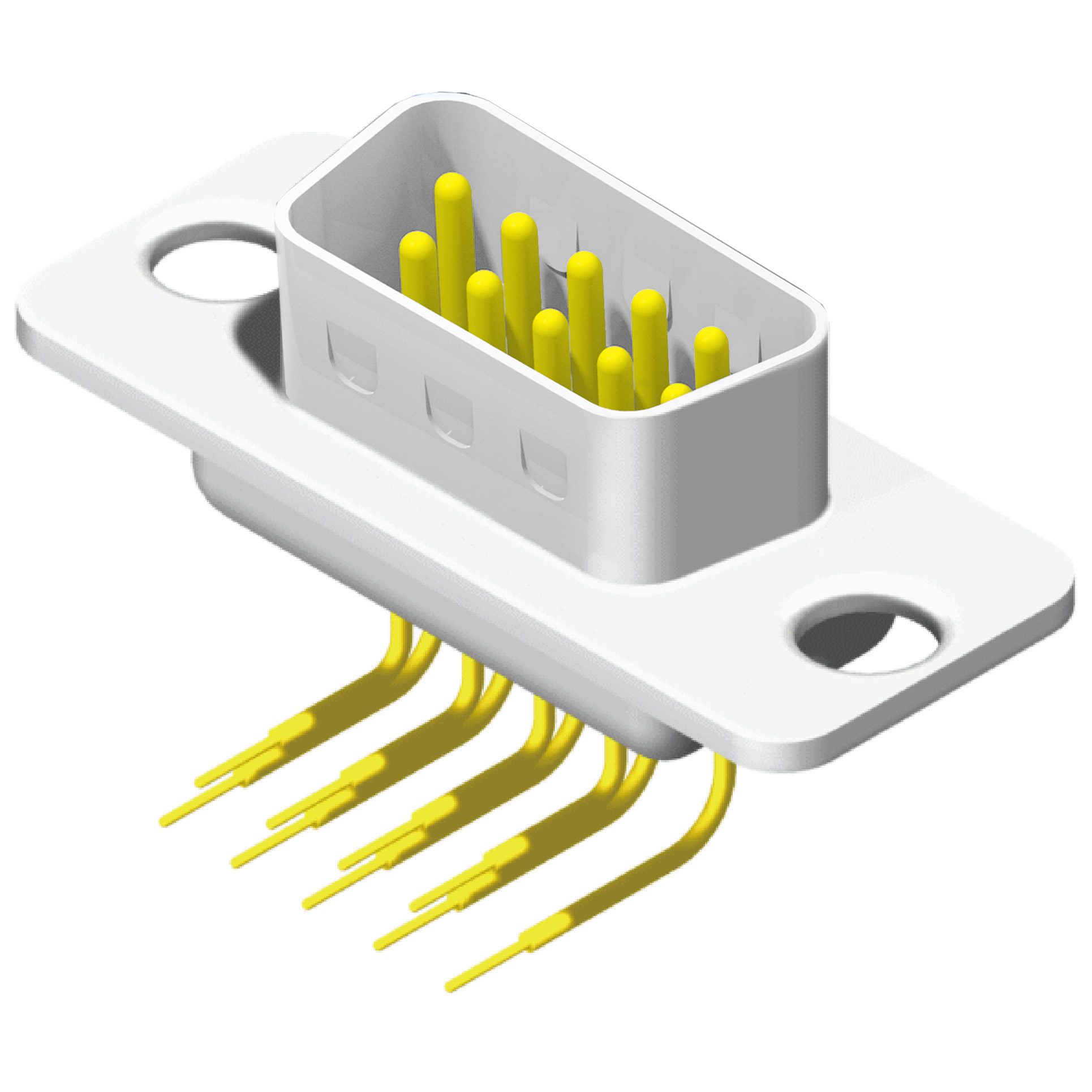

57MDDRXA-XXXXXXXX-01
D-SUB Machine Pin Dip Right Angle Type Male
Specification:
Current Rating:5 AMP
Insulation Resistance:1000MW Min.
Contact Resistance:30mW Max.
Dielectric Voltage:500V AC at sea level.
Operation Temperature:-55°C to +105°C
Insulation Resistance:1000MW Min.
Contact Resistance:30mW Max.
Dielectric Voltage:500V AC at sea level.
Operation Temperature:-55°C to +105°C
Material
Insulator:PBT, UL94V-0
Contact Pin: Copper Alloy
Shell: SPCC
Screw: Iron
Contact Pin: Copper Alloy
Shell: SPCC
Screw: Iron
