64RCAN-2200XXNX
64RCAN-2200XXNX

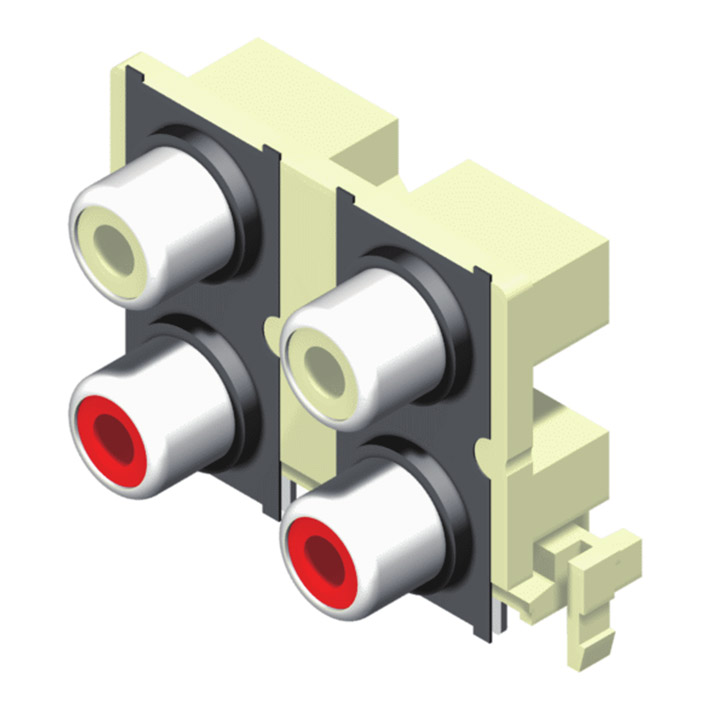

RCA Jack Conn. 2*2Pole W/W/R/R
Specification:
Current Rating: 2A DC
Voltage Rating: 12V DC
Contact Resistance: 30mΩ Max.
At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Durability (Life Test): 4000 Cycles.
Dielectric Withstanding Voltage: 500VAC At 60Hz/Min.
Insertion Force: 0.3~3.0Kg.
Extraction Force: 0.3~3.0Kg.
Voltage Rating: 12V DC
Contact Resistance: 30mΩ Max.
At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Durability (Life Test): 4000 Cycles.
Dielectric Withstanding Voltage: 500VAC At 60Hz/Min.
Insertion Force: 0.3~3.0Kg.
Extraction Force: 0.3~3.0Kg.
Material
Barrel: Brass T=0.4
Terminal: Brass T=0.5
Brackaet: ABS
Insulator: ABS
Ring: PBT+G.F
Terminal: Brass T=0.5
Brackaet: ABS
Insulator: ABS
Ring: PBT+G.F
