64RCAN-120001N1

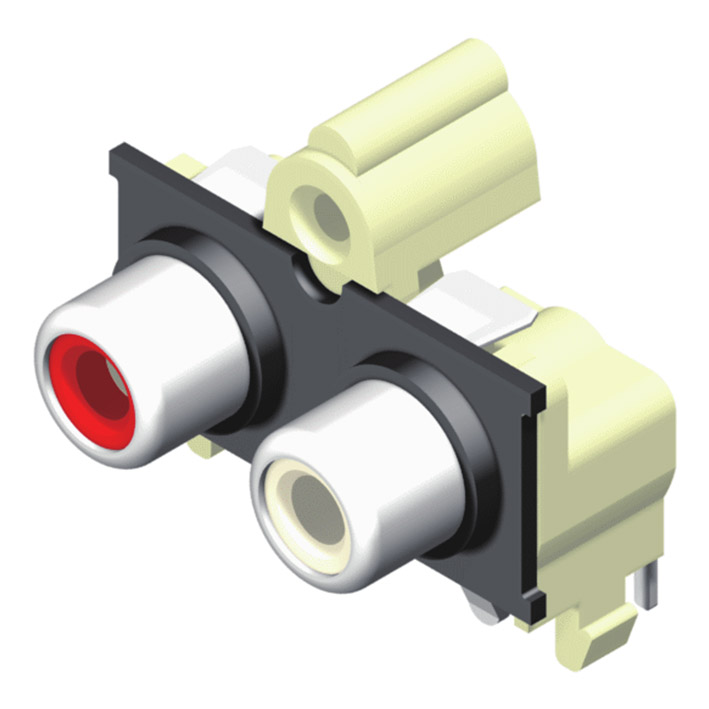

RCA Jack Conn. 1*2Pole Red/White
Specification:
Current Rating: 2A DC
Voltage Rating: 12V DC
Contact Resistance: 30mΩ Max. At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Durability (Life Test): 4000 Cycles.
Dielectric Withstanding Voltage: 500VAC At 60Hz/Min.
Insertion Force: 0.3~3.0Kg.
Extraction Force: 0.3~3.0Kg.
Voltage Rating: 12V DC
Contact Resistance: 30mΩ Max. At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Durability (Life Test): 4000 Cycles.
Dielectric Withstanding Voltage: 500VAC At 60Hz/Min.
Insertion Force: 0.3~3.0Kg.
Extraction Force: 0.3~3.0Kg.
Material
Barrel: Brass T=0.3
Terminal: Brass T=0.25
Brackaet: ABS
Insulator: ABS
Ring: PBT+G.F
Terminal: Brass T=0.25
Brackaet: ABS
Insulator: ABS
Ring: PBT+G.F
