5US4C01MF-124S0BUHQ1
5US4C01MF-124S0BUHQ1

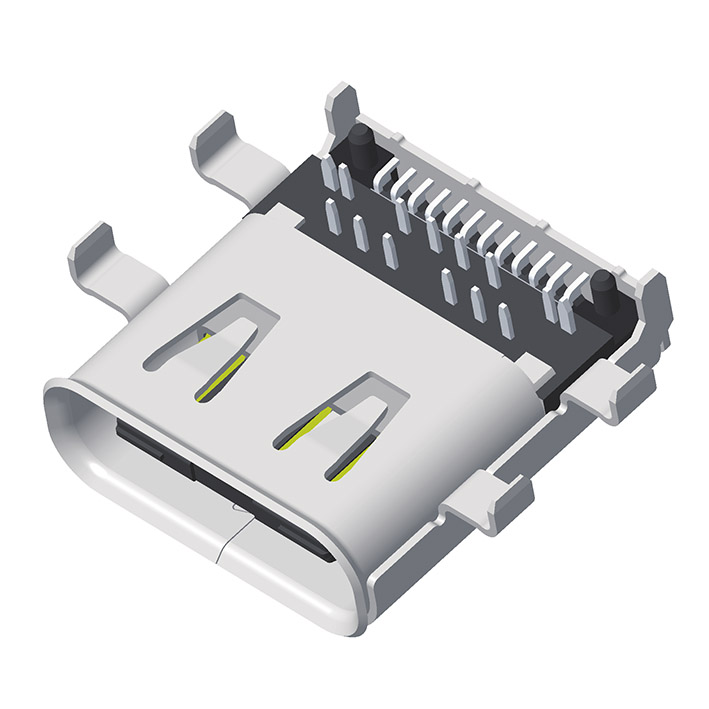

USB 3.1 Type C Female SMT R/A 24P 01 Series
Specification:
Rated Voltage and Current: 1A Max.
Dielectic withstanding voltage: 30V(AC) for 1 minute
Contact Resistance:
Before life test 30mΩ Max.
After life test 50mΩ Max.
Operating Temperature Range: -25°C to +85°C
Insertion Force: 5N~20N.
Withdrawal Force: 8N~20N After 10,000 Cycles Mating: 6N~20N
Dielectic withstanding voltage: 30V(AC) for 1 minute
Contact Resistance:
Before life test 30mΩ Max.
After life test 50mΩ Max.
Operating Temperature Range: -25°C to +85°C
Insertion Force: 5N~20N.
Withdrawal Force: 8N~20N After 10,000 Cycles Mating: 6N~20N
Material
Housing: PBT, UL94-V0
Pin Terminal: Brass T=0.2
Front Shield: Cold Rolled Steel T=0.3
Back Shield: Cold Rolled Steel T=0.3
Pin Terminal: Brass T=0.2
Front Shield: Cold Rolled Steel T=0.3
Back Shield: Cold Rolled Steel T=0.3
