5US2A18RF-204S0XLAD1

Products Category

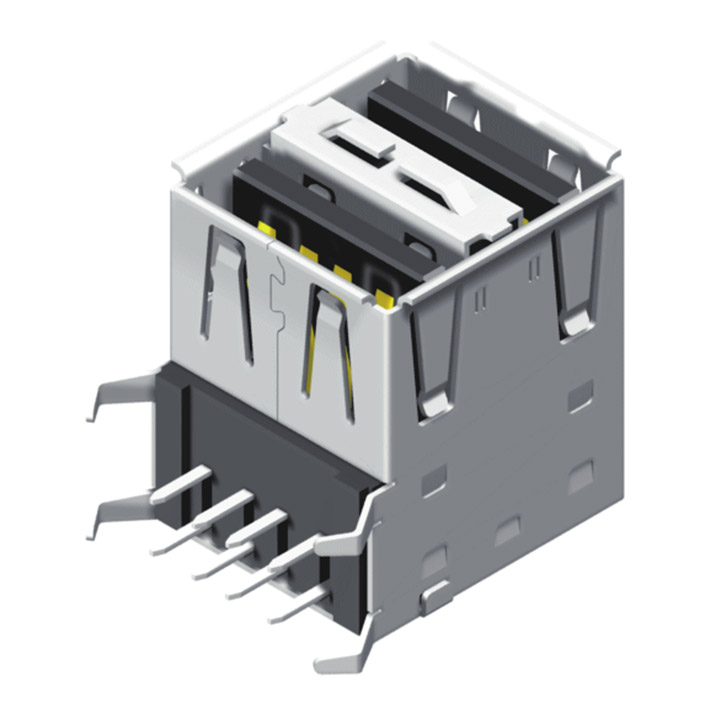

5US2A18RF-204S0XLAD1

USB A Type Female 2 Ports Dip R/A 8P

Specification:

Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.At 500V DC.
Rated Voltage and Current: 1.5A At 250V AC Min.
Dielectric Withstanding Voltage: 750V AC(rms)/Minute
Durability(Life Test): 1500 Cycles
Insertion Force:35 N.Max.
Extraction Force:10 N.Min.

Material

Housing: PBT+G.F
Pin Terminal: Phosphor Bronze T=0.25
Shield: Brass T=0.3
Spring Clip:Brass T=0.3
Rear Shield: SPCC T=0.3
3D Model
