5US2A17SM-104S0XLBC1

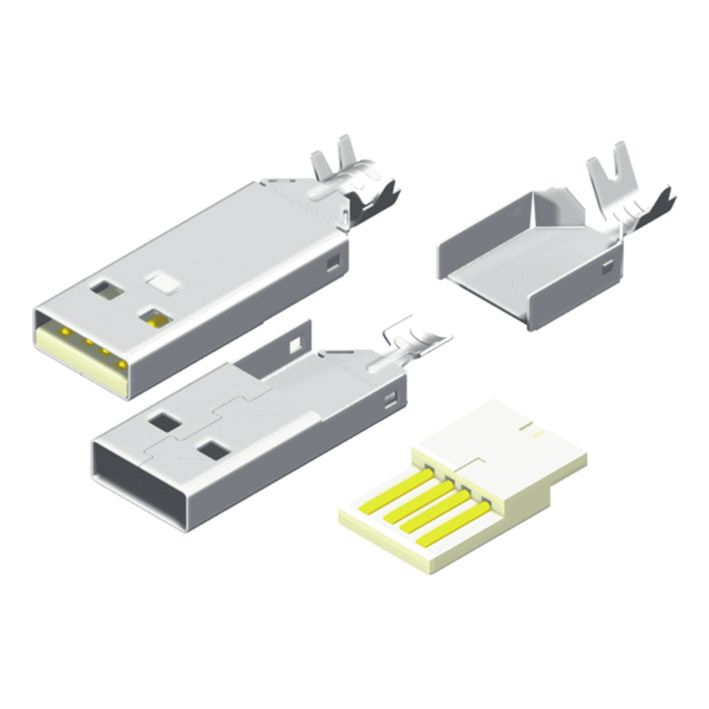

USB A Type Male Solder 4P
Specification:
Rated Current: 1.0A AC/DC Max.
Dielectric Withstanding Voltage: 500V(AC)/Minute
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000 MΩ Min. at DC 500V.
Temperature Range: -55°C~+105°C
Dielectric Withstanding Voltage: 500V(AC)/Minute
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000 MΩ Min. at DC 500V.
Temperature Range: -55°C~+105°C
Material
Housing: PBT, UL94-V0
Pin Terminal: Brass T=0.25
Shield: Cold Rolled Steel T=0.3
Pin Terminal: Brass T=0.25
Shield: Cold Rolled Steel T=0.3
