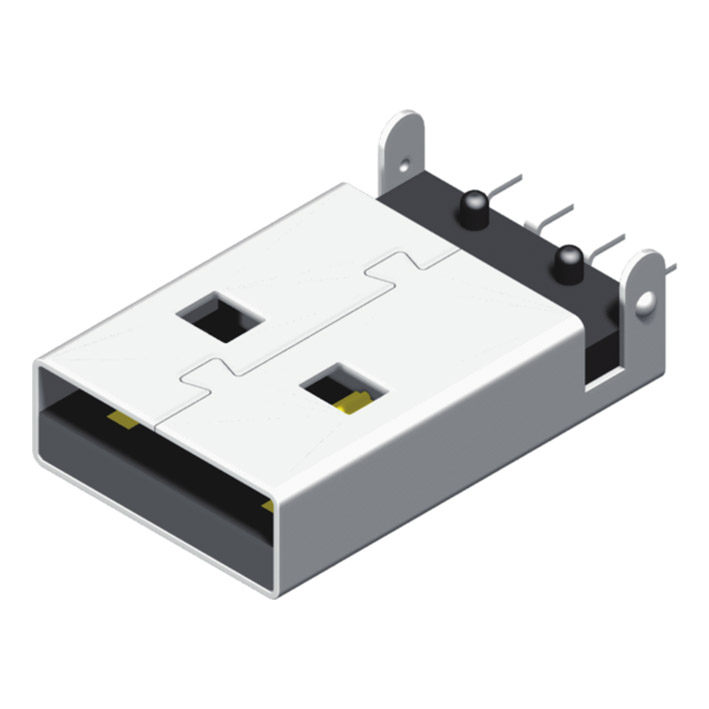

5US2A16MM-104S0XUAD1
USB A Type Male Reverse SMT R/A 4P
Specification:
Contact Resistance: 30mΩ. Max.
Insulation Resistance: 1000MΩ Min. At 500VDC.
Rated Voltage And Current: 1.5A At 250VAC Min.
Dielectric Withstanding Voltage: 750V AC/Minute
Durability (Life Test): 1500 Cycles
Insertion Force: 35N Max.
Extraction Force: 10N Min.
Insulation Resistance: 1000MΩ Min. At 500VDC.
Rated Voltage And Current: 1.5A At 250VAC Min.
Dielectric Withstanding Voltage: 750V AC/Minute
Durability (Life Test): 1500 Cycles
Insertion Force: 35N Max.
Extraction Force: 10N Min.
Material
Housing: Nylon PA9T G.F
Pin Terminal: Brass E-H T=0.25
Shield: SPCC T=0.3
Pin Terminal: Brass E-H T=0.25
Shield: SPCC T=0.3
