5US2A15SF-104S0WLBC1
5US2A15SF-104S0WLBC1

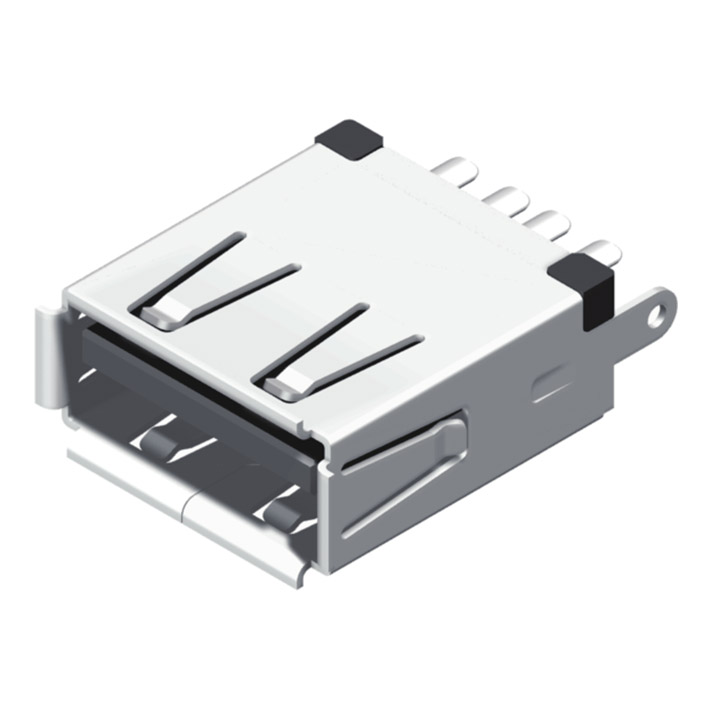

USB A Type Female Solder 4P
Specification:
Rated Voltage and Current: 1A Max.
Dielectic withstanding voltage: 30V(AC) for 1 minute
Contact Resistance:
Before life test 30mΩ Max.
After life test 50mΩ Max.
Insulation Resistance: 1000MΩ Min. at DC 500V.
Insertion Force: 35Ns Max.
Extraction Force: 10Ns Min.
Solderability: Terminal shall be immersed in flux before text. Then dip in molten solder for 5±0.5 sec. at 245±5°C
Temperature Range: -55°C~+85°C
Dielectic withstanding voltage: 30V(AC) for 1 minute
Contact Resistance:
Before life test 30mΩ Max.
After life test 50mΩ Max.
Insulation Resistance: 1000MΩ Min. at DC 500V.
Insertion Force: 35Ns Max.
Extraction Force: 10Ns Min.
Solderability: Terminal shall be immersed in flux before text. Then dip in molten solder for 5±0.5 sec. at 245±5°C
Temperature Range: -55°C~+85°C
Material
Housing: PBT, UL94-V0
Pin Terminal: Brass T=0.25
Shield: Brass T=0.3
Pin Terminal: Brass T=0.25
Shield: Brass T=0.3
