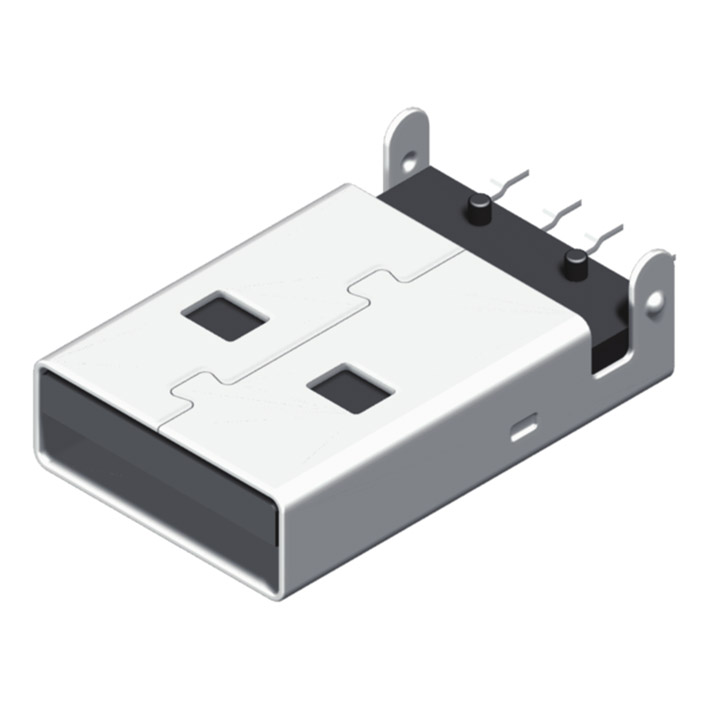

5US2A12MM-104S0XUXC1
USB A Type Male SMT R/A 4P
Specification:
Current Rating: 1.5 AMP
Voltage Rating: 250V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 750V AC/Minute
Durability: 1,500 Cycles
Insertion Force: 35N Max
Withdrawal Force: 10N Min
Voltage Rating: 250V AC
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max
Dielectric Voltage: 750V AC/Minute
Durability: 1,500 Cycles
Insertion Force: 35N Max
Withdrawal Force: 10N Min
Material
Insulator: PA9T, UL94V-0
Contact Pin: Brass
Shield: SPCC, Nickel Plated
Contact Pin: Brass
Shield: SPCC, Nickel Plated
