5US2A07MF-104XXXUXD1
5US2A07MF-104XXXUXD1

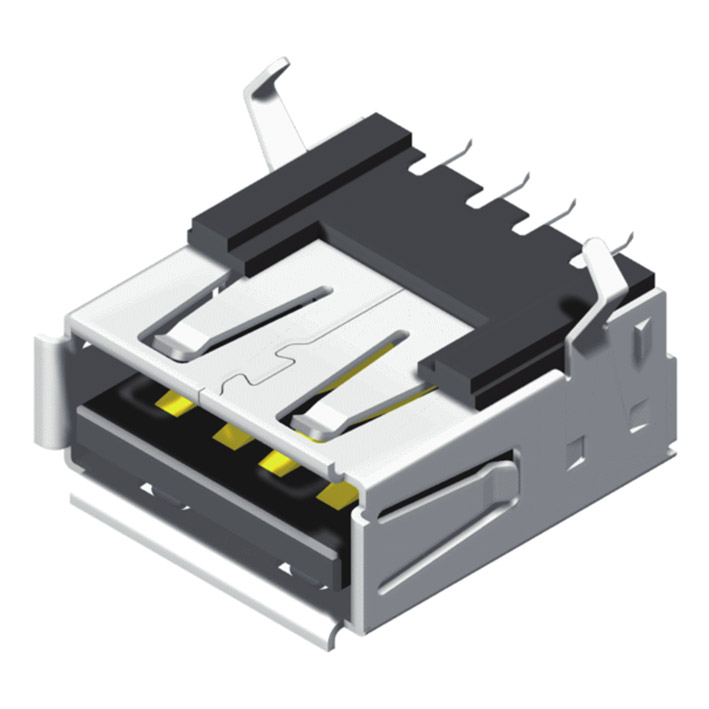

USB A Type Female SMT R/A 4P
Specification:
Current Rating: 1.5 A, 250V AC
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 750V AC/Minute
Operation Temperature: -55°C to +85°C
Durability: 1500 Cycles
Insertion Force: 3.6Kgf Max.
Withdrawal Force: 1.0Kgf Min.
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 750V AC/Minute
Operation Temperature: -55°C to +85°C
Durability: 1500 Cycles
Insertion Force: 3.6Kgf Max.
Withdrawal Force: 1.0Kgf Min.
Material
Housing: Nylon PA9T G.F
Pin Terminal: Phosphor Bronze T=0.25
Shiedl: Brass T=0.3
Pin Terminal: Phosphor Bronze T=0.25
Shiedl: Brass T=0.3
