5UR2B05SM-105SDBUBD1
5UR2B05SM-105SDBUBD1

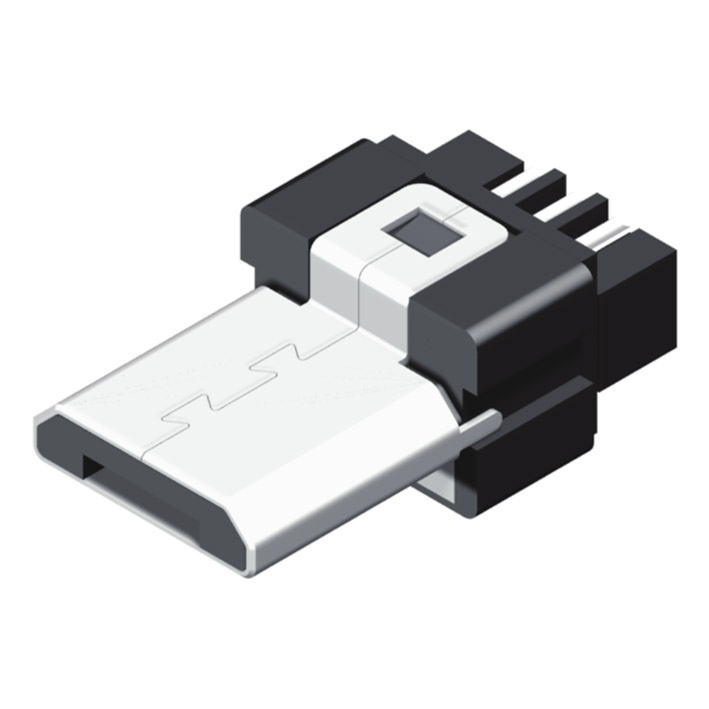

Micro USB B Type Male Solder 5P 05 Series
Specification:
Current Rating:1.0A
Voltage Rating:30V
Dielectric Strength:100V AC FOR 1 MINUTE
Contact Resistance: 30m Ω max
Insulation Resistance: 100 MΩ min.
Mating Force:35N Max.
Un-mating Force:10N Min. Initial
8-20N After 10000 Cycles
Operating temperature:-30° to +80°
Solderability: 260°C ±5°C;5 Sec
Voltage Rating:30V
Dielectric Strength:100V AC FOR 1 MINUTE
Contact Resistance: 30m Ω max
Insulation Resistance: 100 MΩ min.
Mating Force:35N Max.
Un-mating Force:10N Min. Initial
8-20N After 10000 Cycles
Operating temperature:-30° to +80°
Solderability: 260°C ±5°C;5 Sec
Material
Housing: LCP+30%G.F
Pin Terminal: PBS T=0.2
Shield: Stainless Steel T=0.2
Cover: LCP+30%G.F
Spring: Stainless Steel T=0.4
Pin Terminal: PBS T=0.2
Shield: Stainless Steel T=0.2
Cover: LCP+30%G.F
Spring: Stainless Steel T=0.4
