5UM2M01MF-105S0BUXC1
5UM2M01MF-105S0BUXC1

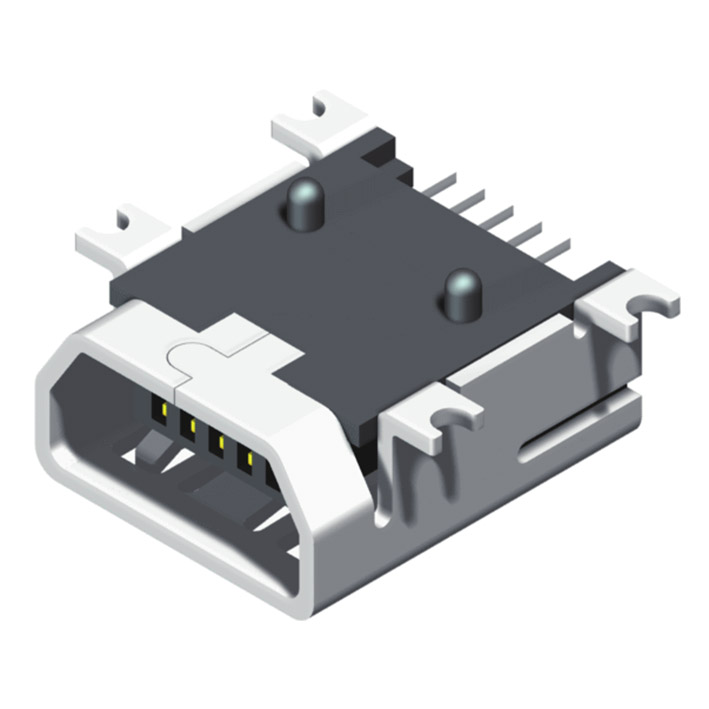

Mini USB AB Type Female SMT R/A 5P

Specification:

Current Rating: 1 AMP
Insulation Resistance: 1000MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 500V AC/Minute
Insertion Force: 30N Max.
Withdrawal Force: 5N Min.
Operating Temperature: -25°C to +85°C

Material

Insulator: LCP, UL94V-0
Contact Pin: Copper Alloy

Download Files

2D
3D
