5UM2B02MF-105S0BUXCX
Products Category
5UM2B02MF-105S0BUXCX

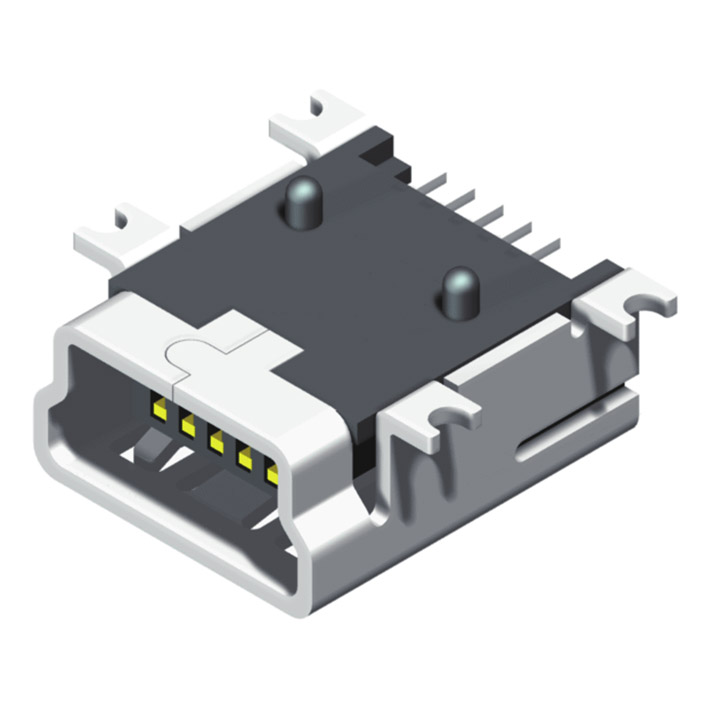

Mini USB B Type Female SMT R/A 5P 02 Series
Specification:
Current Rating: 1.0 A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 30V AC/Minute
Operation Temperature: -55°C to +105°C
Durability: 10000 Cycles Min.
Insertion Force: 3.1Kgf Max.
Withdrawal Force: 0.5Kgf Min.
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min.
Dielectric Voltage: 30V AC/Minute
Operation Temperature: -55°C to +105°C
Durability: 10000 Cycles Min.
Insertion Force: 3.1Kgf Max.
Withdrawal Force: 0.5Kgf Min.
Material
Housing: Nylon PA9T+G.F
Pin Terminal: PBS T=0.25
Pin Terminal: PBS T=0.25
