5UM2B02MF-105S0BUH41
5UM2B02MF-105S0BUH41

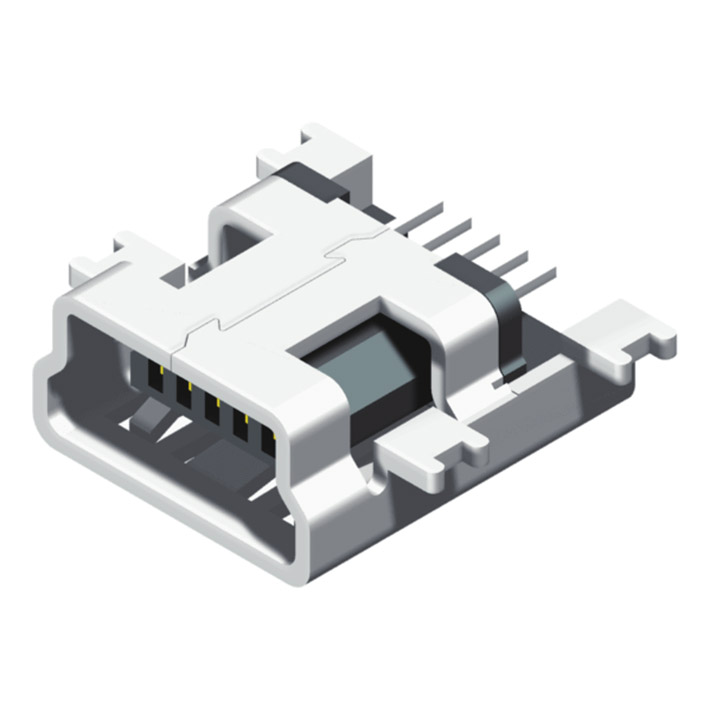

Mini USB B Type Female SMT R/A Sink 5P
Specification:
Rated Voltage: 30V AC/DC Max.
Rated Current: 1.0A AC/DC Max.
Dielectric Strength: 100V AC/Minute Between Adjecent Terminal No Breakdown
Insulation Resistance: 100 MΩ Min. 100C DC For 1 Minute Between Adjecent Terminal
Contact Resistance: 50 mΩ Max.
Operation Temperature: -25°C to +80°C
Life Time: 500 Cycles
Mating Force: 35N(3.57 kgf) Max.
Un-Mating Force: 7N(0.71 kgf) Min.
3N Min After 5000 Cycles
Rated Current: 1.0A AC/DC Max.
Dielectric Strength: 100V AC/Minute Between Adjecent Terminal No Breakdown
Insulation Resistance: 100 MΩ Min. 100C DC For 1 Minute Between Adjecent Terminal
Contact Resistance: 50 mΩ Max.
Operation Temperature: -25°C to +80°C
Life Time: 500 Cycles
Mating Force: 35N(3.57 kgf) Max.
Un-Mating Force: 7N(0.71 kgf) Min.
3N Min After 5000 Cycles
Material
Housing: Nylon PA9T+G.F
Pin Terminal: Phosphor Bronze
Shield: Brass T=0.4
Pin Terminal: Phosphor Bronze
Shield: Brass T=0.4
