5TP381S-5EVE-U
5TP381S-5EVE-U

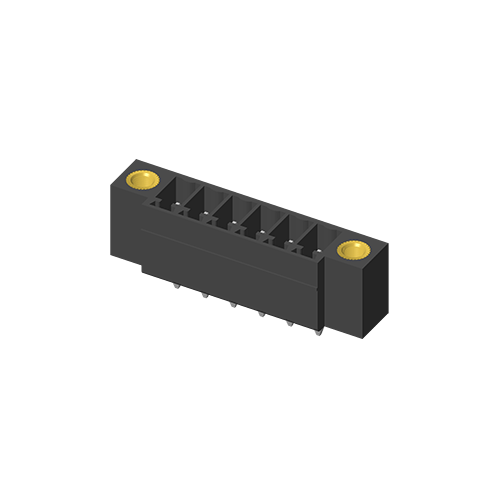

Pluggable Terminal Block 3.81mm Straight Type

Specification:

ELECTRICAL
Standard: UL IEC
Insulation Resistance: 500MΩ / DC 500V
Withstanding Voltage: AC 2000V for one minute
MECHANICAL
Temp. Range: -40°C ~ +105°C

Material

Housing: LCP, UL94V-0
Pin header:Copper Alloy, Tin plated
Order / Inquiry Information:
  • = Must have
