5RT2DR21R2N-88XXP3L-001-E1

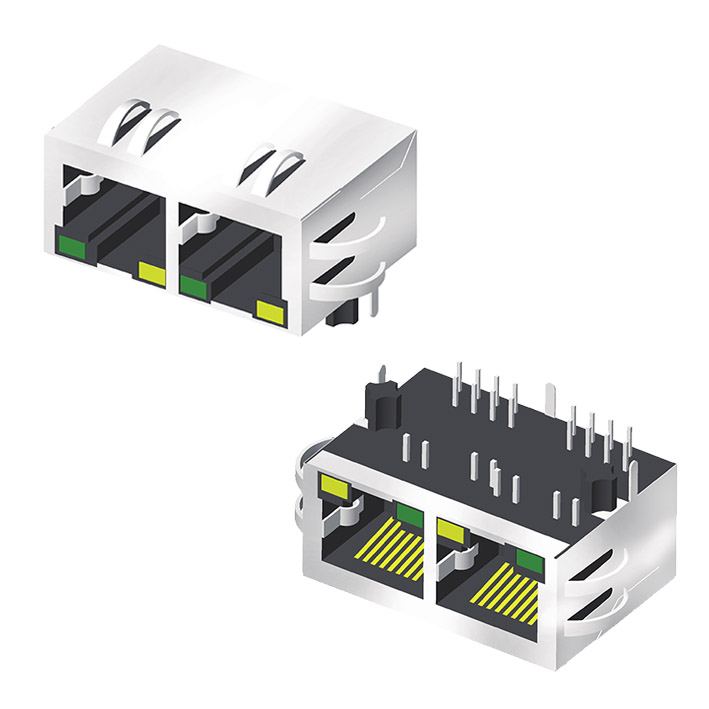

Modular Jack Shielded Side Entry With LED H=13.5 W=21.35 001 Series
Specification:
Complies with IEEE standards and all 10/100 Ethernet specifications including 350uH with 8mA DC bias
Integrated Mag-modular design provides higher reliability and conserves Minimizing PCB space
Different color of LEDs option available
Operating temperature: 0°C to +70°C
Storage temperature: -40°C to +85°C
Lead-free process,compliant RoHS
Integrated Mag-modular design provides higher reliability and conserves Minimizing PCB space
Different color of LEDs option available
Operating temperature: 0°C to +70°C
Storage temperature: -40°C to +85°C
Lead-free process,compliant RoHS
Material
Housing:Thermoplastic PBT+30%GF UL94V0 rated
Contact: Phosphor Bronze( C5191)
Content area Gold plated
InputTerminal: Brass(C2680)
Metal shielding: Copper alloy with Nickel plated(C2680),
Contact: Phosphor Bronze( C5191)
Content area Gold plated
InputTerminal: Brass(C2680)
Metal shielding: Copper alloy with Nickel plated(C2680),
