5RPF-88XXXTLB-850-A1
Products Category
5RPF-88XXXTLB-850-A1

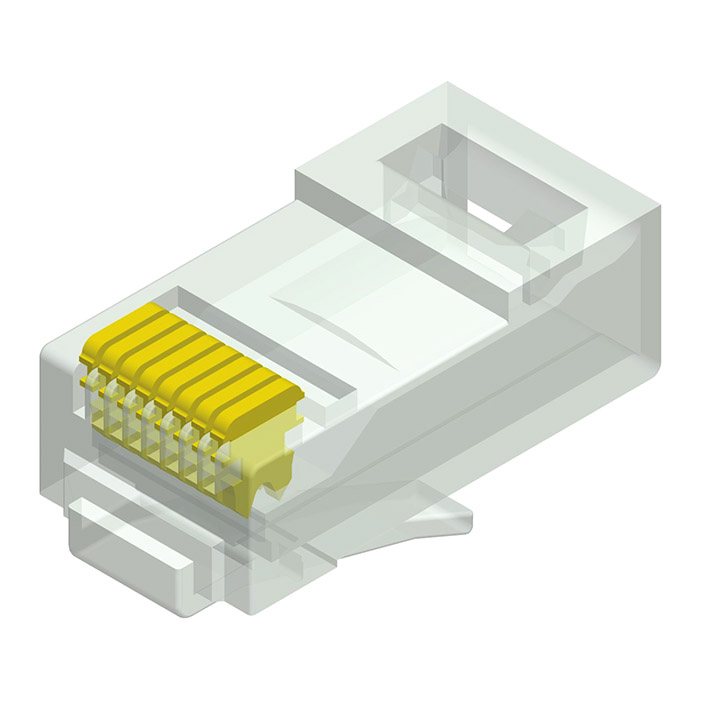

Modular Plug 8 Position Long Body For C6 850 Series
Specification:
Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +85°C
Mating Cycles: 750 Cycles Min
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +85°C
Mating Cycles: 750 Cycles Min
Material
Housing: PC, UL94V-2, clean
Terminal: Copper alloy plated with gold
Part 1: PC. UL94V-2, clean
Terminal: Copper alloy plated with gold
Part 1: PC. UL94V-2, clean
