5RPE-8XXXXTLB-823-A1
5RPE-8XXXXTLB-823-A1

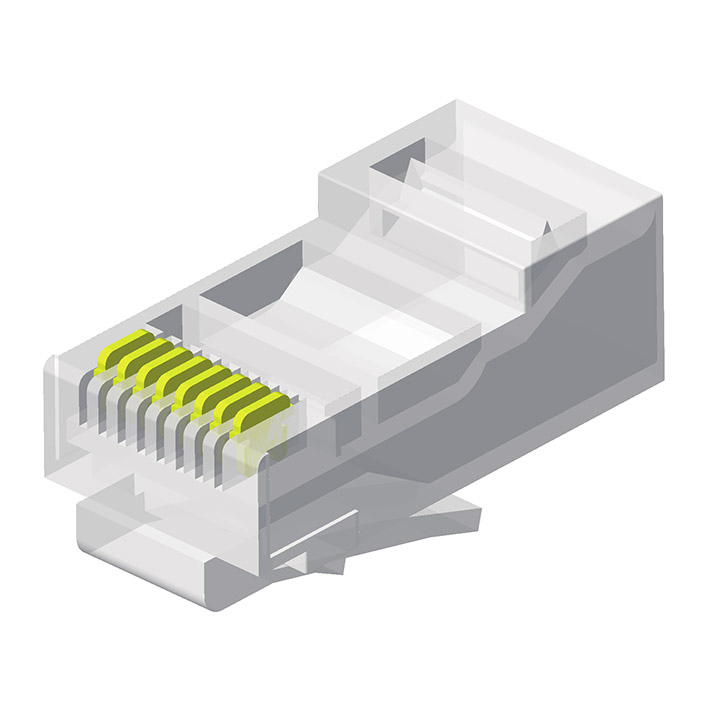

Modular Plug 8 Position Long Body 823 Series

Specification:

Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000VAC/Minute
OperationTemperature: -40°C to +80°C
Durability: 750 Cycles.

Material

Insulator: PC , UL94V-2 or UL94V-0
Contact Pin: Copper Alloy

Download Files

2D
3D
Order / Inquiry Information:
  • * = Must have
