5RJ1MR10F1N-XXXX00U-963-A1

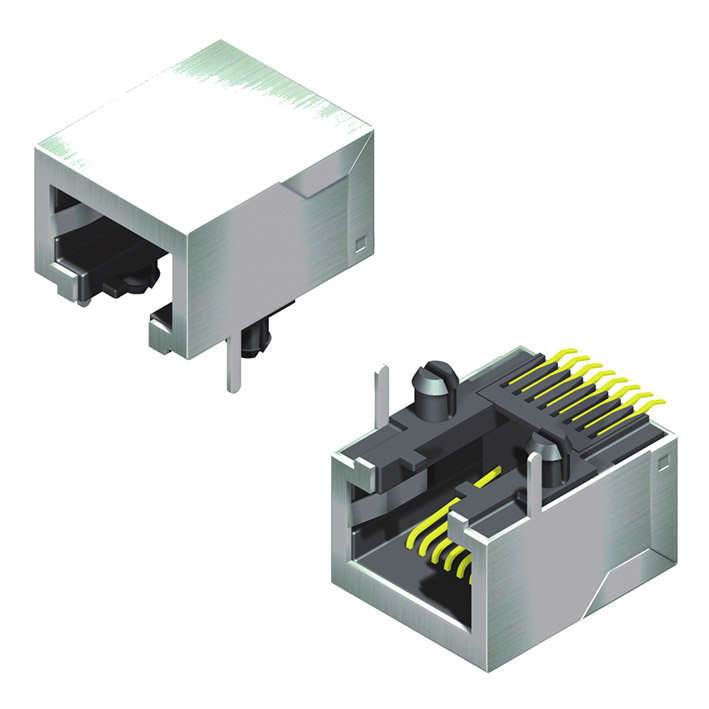

Modular Jack Shielded SM T Type Single Port H=12.0 W=18.7 963 Series
Specification:
Voltage: 125VAC
Current: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000VAC
Current: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000VAC
Material
Housing: Hi-TemperatureThermoplastic.UL94V-0, Black
Contact: Phosphor bronze
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Shield: Brass Plated with nickel
Contact: Phosphor bronze
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Shield: Brass Plated with nickel
