5RJ1DS10X2X-XXXX00X-260-A1

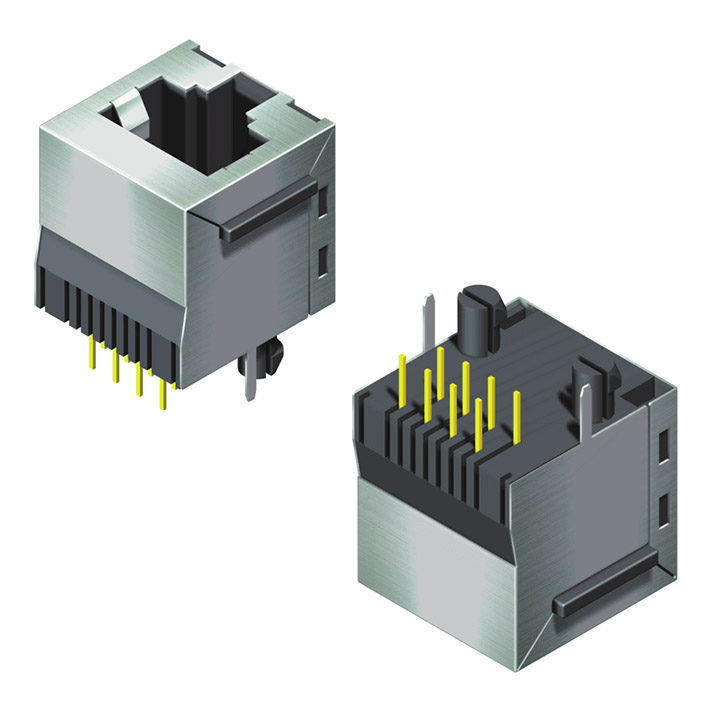

Modular Jack Shielded Top Entry H=16.8 W=16.4 260 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
Durability: 750 Cycles Min
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
Durability: 750 Cycles Min
Material
Housing & Insert: PBT or Hi-Temperature,UL94V-0,black
Conductor: 0.35 mm thickness Phosphor Bronze
Gold plated over nickel on contact area
Tin plated over nickel on solder area
Shield: Bronze plated nickel
Conductor: 0.35 mm thickness Phosphor Bronze
Gold plated over nickel on contact area
Tin plated over nickel on solder area
Shield: Bronze plated nickel
