5RJ1DS00N0X-XXXX00L-264-AX

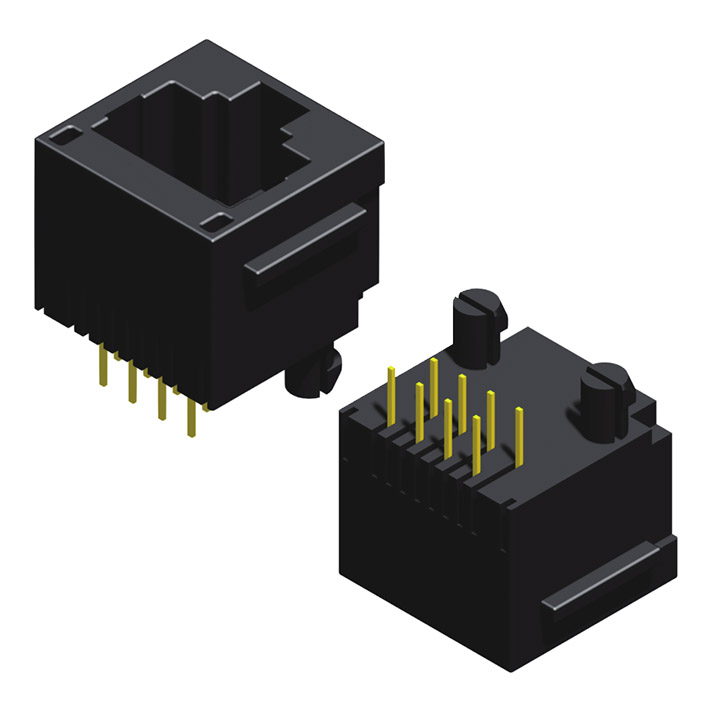

Modular Jack Top Entry H=12.7 W=15.1 264 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000V
Temperature: -40°C to 85°C
Durability: 750 Cycles Min.
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 1000V
Temperature: -40°C to 85°C
Durability: 750 Cycles Min.
Material
Housing & Insert: P.B.T, UL94V-0, Black
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
