5RJ1DRX0R4N-88XX00L-602-A1
5RJ1DRX0R4N-88XX00L-602-A1

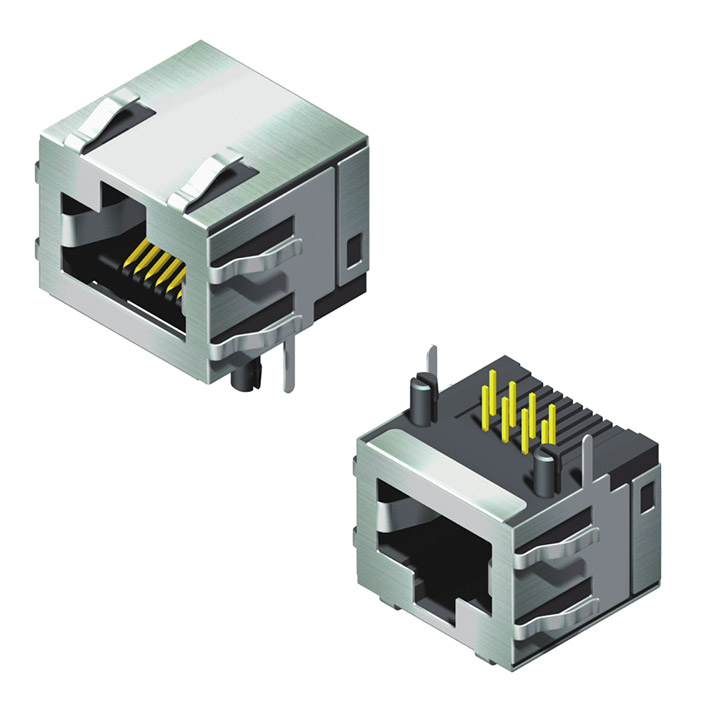

Modular Jack Shielded Side Entry H=13.4 W=15.6 602 Series
Specification:
Material
Housing: PBT UL94V-0, Black
Conductor:
-Round pin: 0.45 mm diameter Phosphor Bronze
Plating: Gold plated over Nickel
-Stamping pin: 0.35 x 0.42 mm Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
Shielded: 0.25mm copper alloy with nickel plated.
Conductor:
-Round pin: 0.45 mm diameter Phosphor Bronze
Plating: Gold plated over Nickel
-Stamping pin: 0.35 x 0.42 mm Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
Shielded: 0.25mm copper alloy with nickel plated.
