5RJ1DRX0R4X-88XXPXX-561-R1
5RJ1DRX0R4X-88XXPXX-561-R1

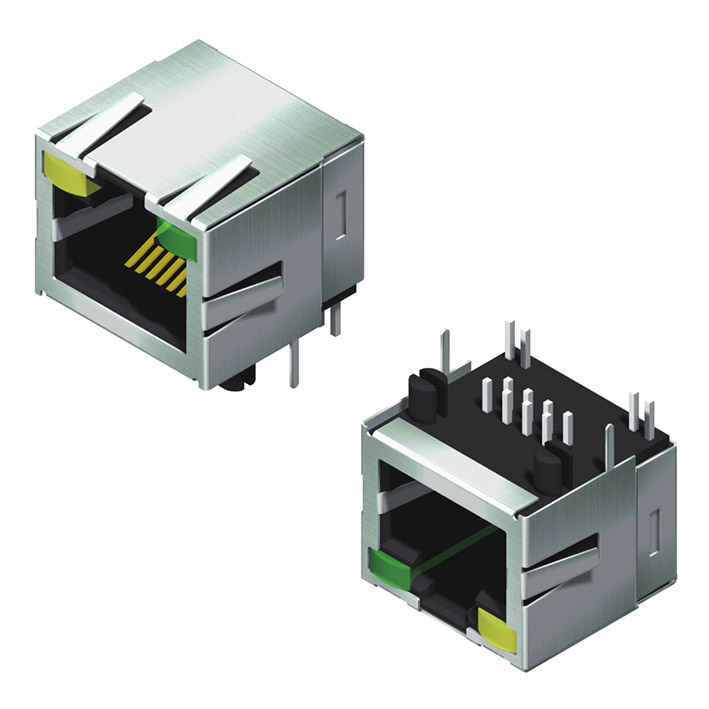

Modular Jack Shielded Side Entry With LED H=13.5 W=15.75 561 Series
Specification:
Voltage: 125V AC.
Current Rating : 1.5AMP.
Dielectric Strength: 1000 VAC Rms 50hz or 60hz,1min.
Insulation Resistance: 500 MΩ Min. Initial.
After 500v Dc For 1 Minute.
Contact Resistance: Single Terminal 30mΩ Max.
Initial 50mΩ Max. After
Durability Test.
Durability: 750 Cycles Min,12.5mm/Minute.
Insertion Force: 2.2kg.F Max.
Retention Strength : 7.7kg.F Between Jack and Plug.
Operating Temperature: -40°C～+85°C.
Storage Temperature: -40°C~+85°C.
Current Rating : 1.5AMP.
Dielectric Strength: 1000 VAC Rms 50hz or 60hz,1min.
Insulation Resistance: 500 MΩ Min. Initial.
After 500v Dc For 1 Minute.
Contact Resistance: Single Terminal 30mΩ Max.
Initial 50mΩ Max. After
Durability Test.
Durability: 750 Cycles Min,12.5mm/Minute.
Insertion Force: 2.2kg.F Max.
Retention Strength : 7.7kg.F Between Jack and Plug.
Operating Temperature: -40°C～+85°C.
Storage Temperature: -40°C~+85°C.
Material
Housing: PBT,UL94V-0,Black.
Terminal: Phosphor Bronze ∅=0.46mm,6u” Gold Plating.
Shield:C2680,T=0.20mm,20u” Min Nickel Plating on All Area.
Terminal: Phosphor Bronze ∅=0.46mm,6u” Gold Plating.
Shield:C2680,T=0.20mm,20u” Min Nickel Plating on All Area.
