5RJ1DR10X2N-XXXX00L-280-A1

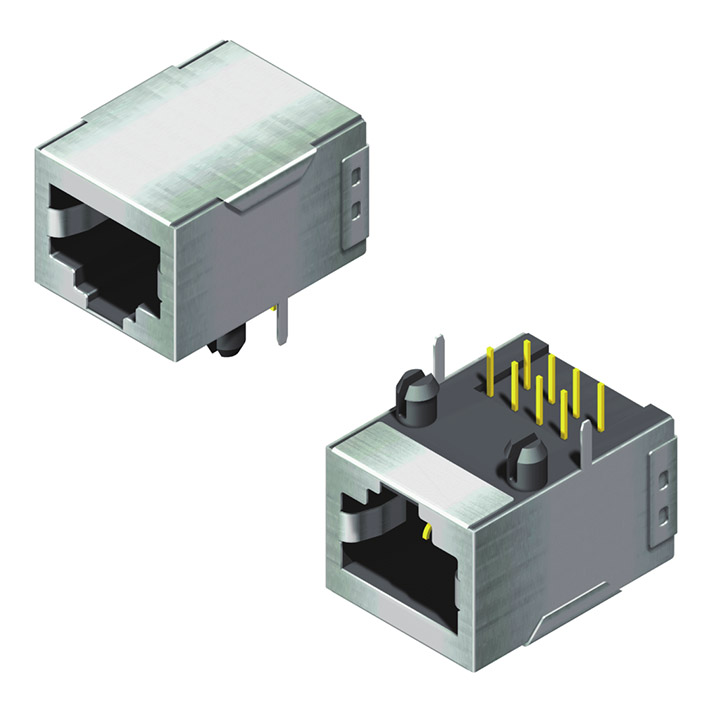

Modular Jack Shielded Side Entry H=13.1 W=17.9 280 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
OperationTemperature: -40°C to +80°C
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
OperationTemperature: -40°C to +80°C
Material
Housing & Insert: P.B.T, UL94V-0, Black
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Shield: 0.25mm Bronze plated nickel
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Shield: 0.25mm Bronze plated nickel
