5RJ1DR10R4N-88XX00L-274-A2

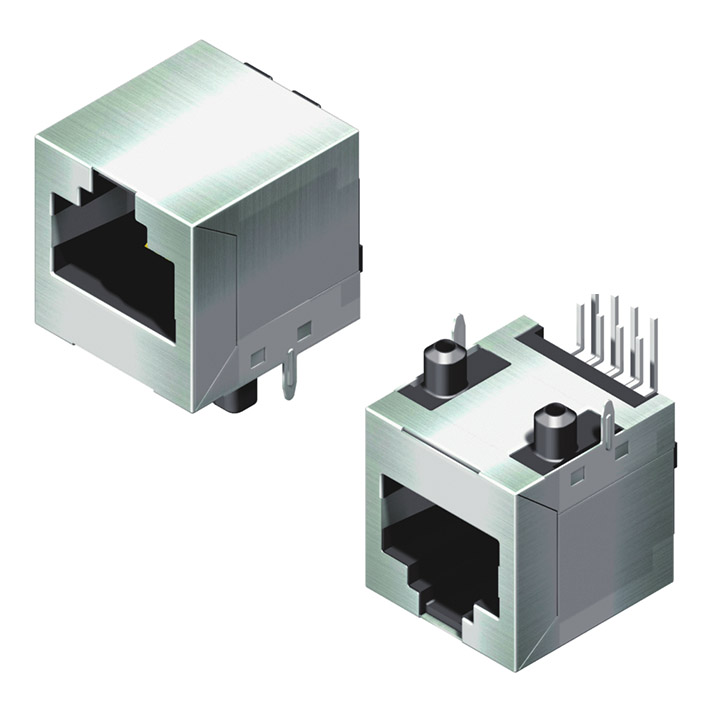

Modular Jack Side Entry H=16.5 W=16.9 274 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
Current Rating: 1.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Min
Dielectric Withstanding Voltage: 1000V
Material
Housing & Insert: P.B.T, UL94V-0, Black
Conductor: 0.35 x 0.42mm thickness Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
Shield: Brass Plating Nickel.
Conductor: 0.35 x 0.42mm thickness Phosphor Bronze
Plating: Gold plated over nickel on contact area,
Tin plated over nickel on solder area.
Shield: Brass Plating Nickel.
