5RJ1DR00N0X-XXXX00L-240-AX

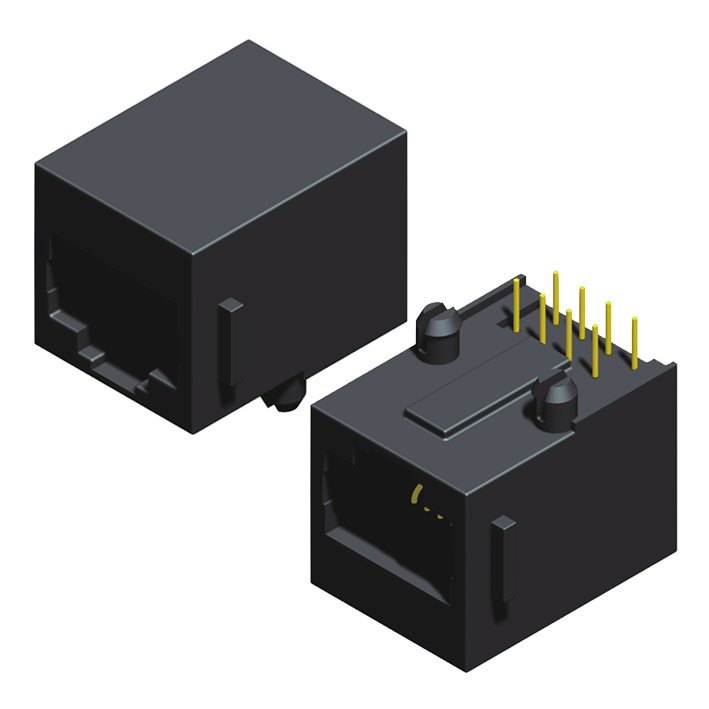

Modular Jack Side Entry H=15.7 W=20.5 240 Series
Specification:
Voltage Rating: 125V
Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +70°C
Current Rating: 1.5AMP
Insulation Resistance: 500MΩ Min.
Contact Resistance: 30mΩ Max.
Dielectric Voltage: 1000V AC/Minute
OperationTemperature: -40°C to +70°C
Material
Housing & Insert: P.B.T, UL94V-0, Black
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
Terminal: 0.35 x 0.42 mm thickness Phosphor Bronze,
Plating: Gold plated over Nickel on contact area,
Tin plated over Nickel on solder area.
