5MS2S28N-1XXXXBXU-0590-02
5MS2S28N-1XXXXBXU-0590-02

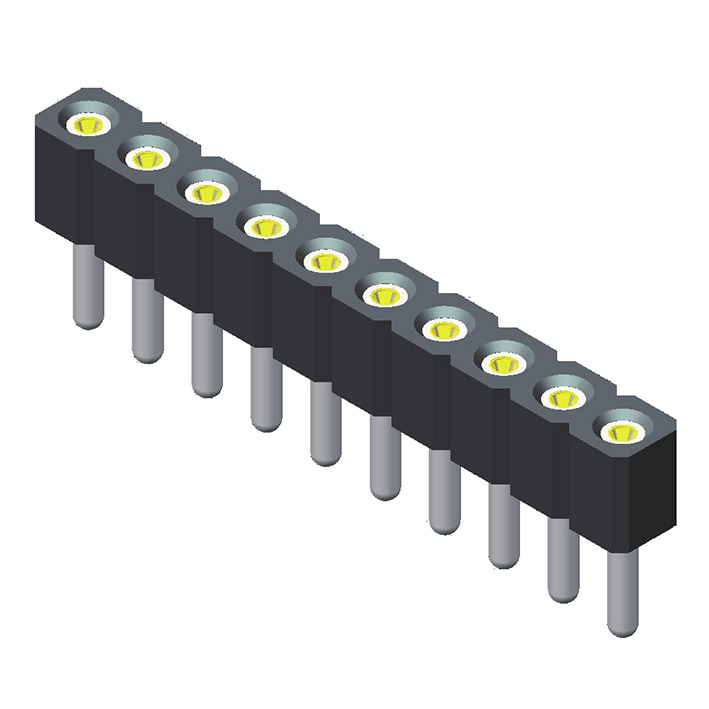

Machine Pin Socket 2.0mm Straight Type 1 Row L=5.9
Specification:
Current Rating: 3 AMP
Insulation Resistance: ≧1000MΩ at V=100V.
Contact Resistance: ≦10mΩ/Contact
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Insulation Resistance: ≧1000MΩ at V=100V.
Contact Resistance: ≦10mΩ/Contact
Dielectric Voltage: 1000V AC/Minute
Operation Temperature: -40°C to +105°C
Material
Insulator: Hi-Temp. Thermoplastic, UL94V-0
Contact Pin: Copper Alloy
Contact Pin: Copper Alloy
