5KTFS-09G0NHL01

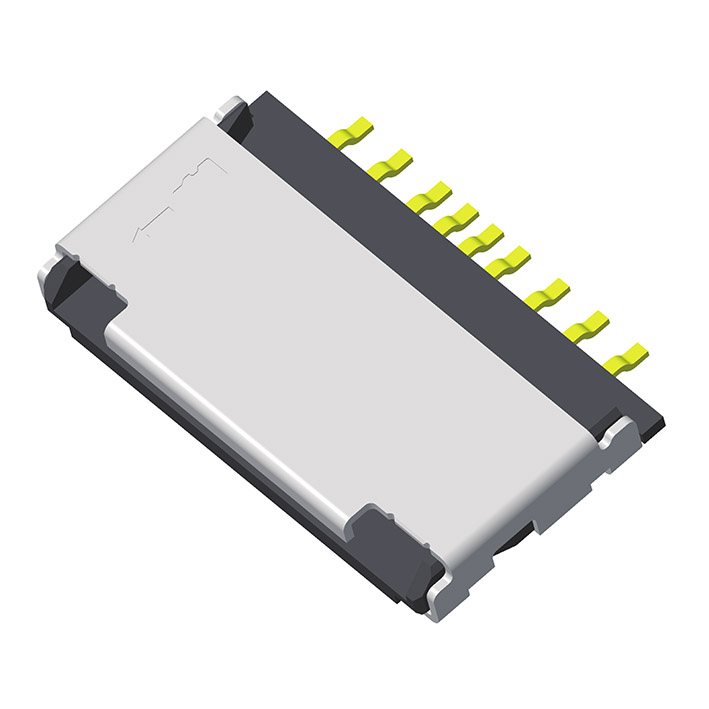

TF Card Holder Short Body Type 8+1P H=1.5/1.7
Specification:
Current Rating: 0.5 AMP
Rating Voltage: 30V AC
Insulation Resistance: 100MΩ Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 100V AC/Minute
Mating Cycles: 5000 Insertions
Operating Condition: Temperature :-30°C to +80°C
Rating Voltage: 30V AC
Insulation Resistance: 100MΩ Min.
Contact Resistance: 50mΩ Max.
Dielectric Voltage: 100V AC/Minute
Mating Cycles: 5000 Insertions
Operating Condition: Temperature :-30°C to +80°C
Material
Housing: Hi-Temp Temperature, UL94V-0, Black
Terminal: Copper Alloy
Shell: Stainless steel
Terminal: Copper Alloy
Shell: Stainless steel
