5KSDZ-09XXPXB01
5KSDZ-09XXPXB01

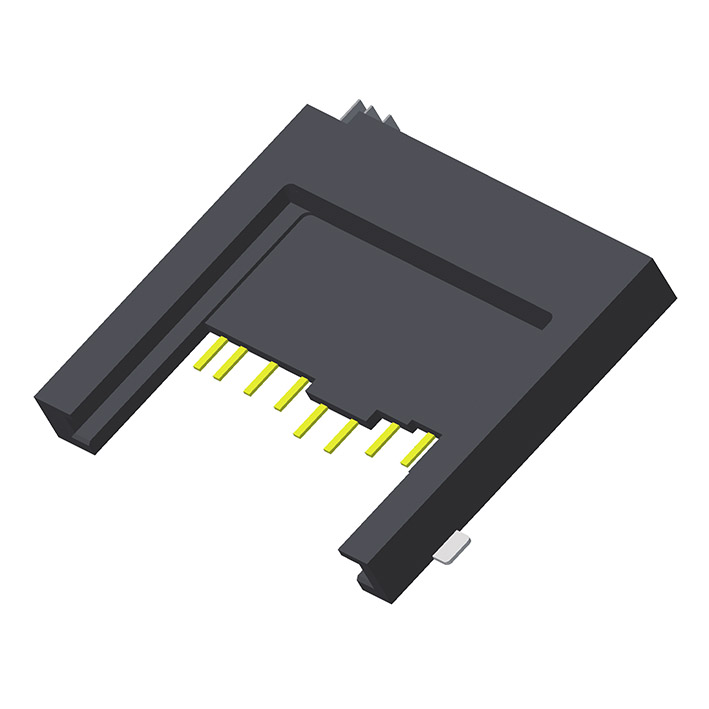

SD Card Holder Without Cover Type 9P H=3.4

Specification:

Current Rating: 1 AMP
Insulation Resistance: 50MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 250V AC/Minute
Operation Temperature: -55°C to +85°C

Material

Insulator: Hi-Temp. Thermoplastic, UL 94V-0
Contact Pin: Copper Alloy

Download Files

2D
3D
