5H3000M0-2XXBBL00C01
5H3000M0-2XXBBL00C01

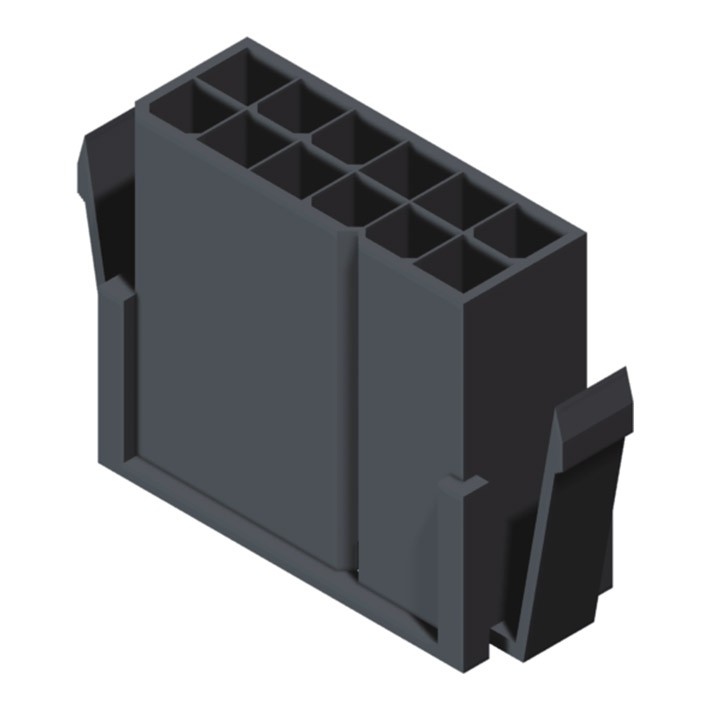

3000 Series 3.0mm Housing Male 2 Row W/O Ear
Specification:
Current Rating: 5A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 10mΩ Max
Insulation Resistance: 1000MΩ Min
Withstanding Voltage: 1500V AC/Minute
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 10mΩ Max
Insulation Resistance: 1000MΩ Min
Withstanding Voltage: 1500V AC/Minute
Material
Material: Nylon 66,UL94V-2
