5ECN1S0BN-XXXXXXX-B1
5ECN1S0BN-XXXXXXX-B1

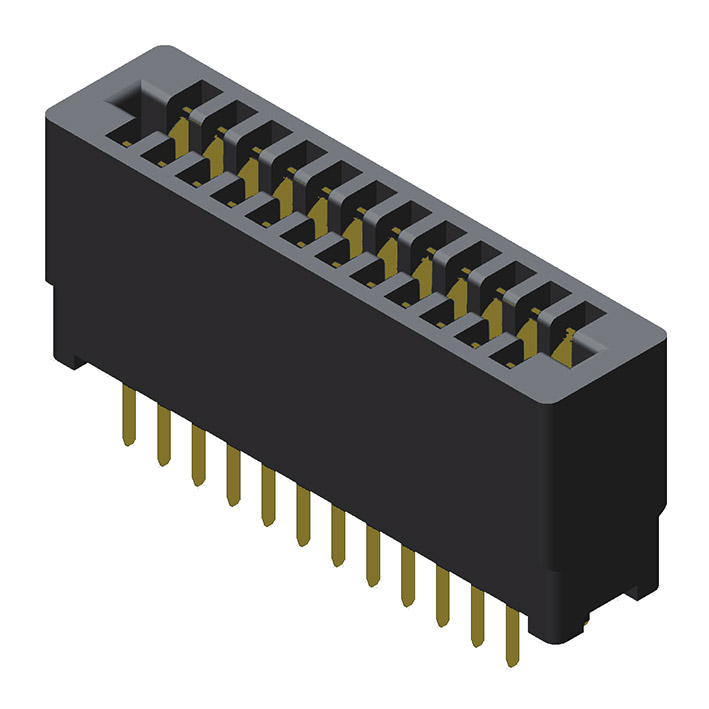

Cardedge 2.54mm Straight Type

Specification:

Current Rating: 3 AMP
Insulation Resistance: 5000MΩ Min.
Contact Resistance: 20mΩ Max.
Dielectric Voltage: 800V AC/Minute
Operation Temperature: -55°C to +105°C

Material

Insulator: Nylon 6T or PBT, UL 94V-0
Contact Pin: Phosphor Bronze

Download Files

2D
3D
Order / Inquiry Information:
  • * = Must have
