5DJXXDC02-03T0BLB-01
5DJXXDC02-03T0BLB-01

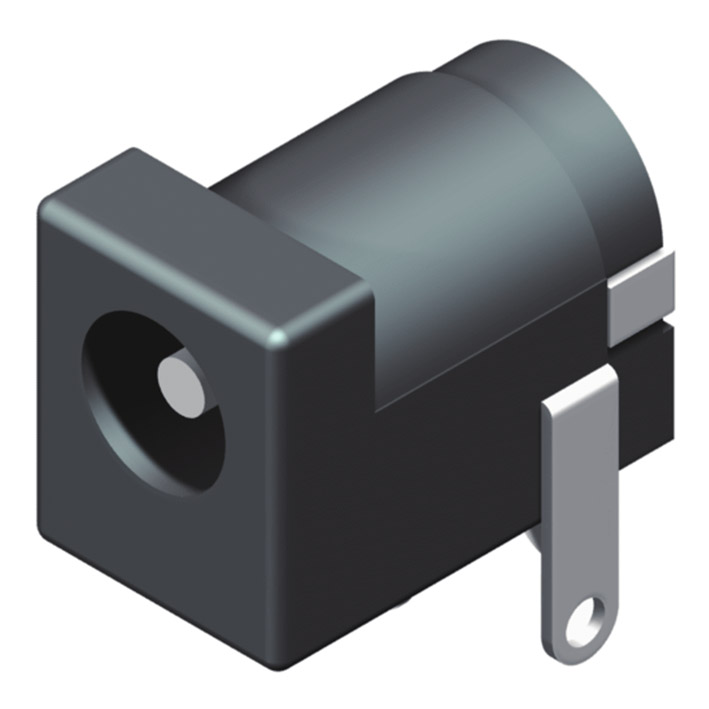

DC Jack Conn. Right Angle W/O Shell 02 Series
Specification:
Current Rating: 2A, 12V DC / 1A, 100V AC
Contact Resistance: 30mΩ Max. At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -25°C to +70°C
Insertion Force:3.0Kg Max.
Extraction Force: 0.3Kg Min.
Contact Resistance: 30mΩ Max. At AC 100mA Max. 1KHz.
Insulation Resistance: 100MΩ Min. At 500VDC.
Dielectric Voltage: 500V AC/Minute
Operation Temperature: -25°C to +70°C
Insertion Force:3.0Kg Max.
Extraction Force: 0.3Kg Min.
Material
Pin Terminal: Brass T=0.4
Sleeve Terminal: P.B.S T=0.25
Break Terminal: Brass T=0.4
Crnter Pin: Brass
Insulator: PBT+G.F
Back Cover: PBT+G.F
Sleeve Terminal: P.B.S T=0.25
Break Terminal: Brass T=0.4
Crnter Pin: Brass
Insulator: PBT+G.F
Back Cover: PBT+G.F
