5DJXXDA02-03T0BLB-01
5DJXXDA02-03T0BLB-01

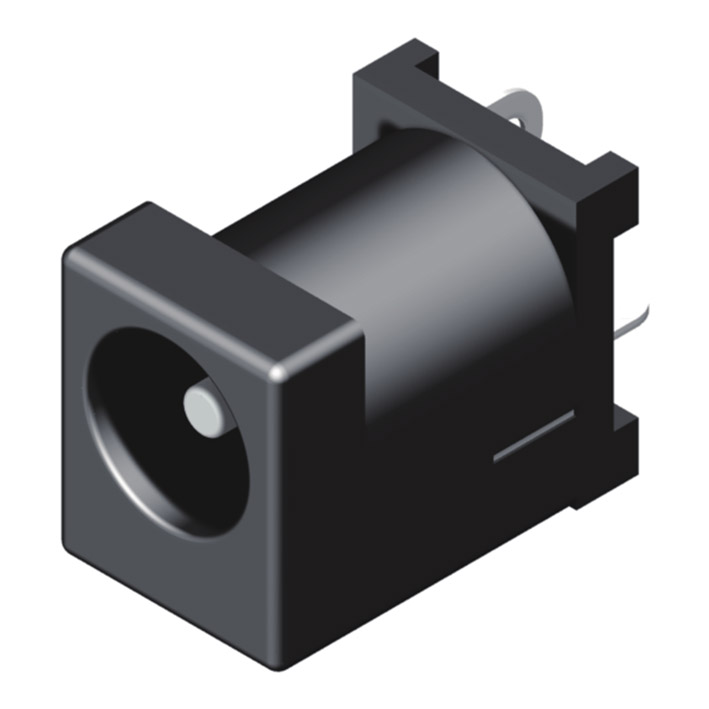

DC Jack Conn. Straight W/O Shell 02 Series
Specification:
Current Rating: 2A , 1A
Voltage Rating: 12V DC , 100V AC
Insulation Resistance: 100MΩ Min
Contact Resistance: 30MΩ Max
Dielectric Voltage: 500VAC/Minute
Voltage Rating: 12V DC , 100V AC
Insulation Resistance: 100MΩ Min
Contact Resistance: 30MΩ Max
Dielectric Voltage: 500VAC/Minute
Material
Pin Terminal: Brass T=0.4
Sleeve Terminal: Phosphor Bronze T=0.25
Break Terminal: Brass T=0.4
Crnter Pin: Brass
Insulator: PBT+G.F
Back Cover: PBT+G.F
Sleeve Terminal: Phosphor Bronze T=0.25
Break Terminal: Brass T=0.4
Crnter Pin: Brass
Insulator: PBT+G.F
Back Cover: PBT+G.F
