5BB08BC36M
5BB08BC36M

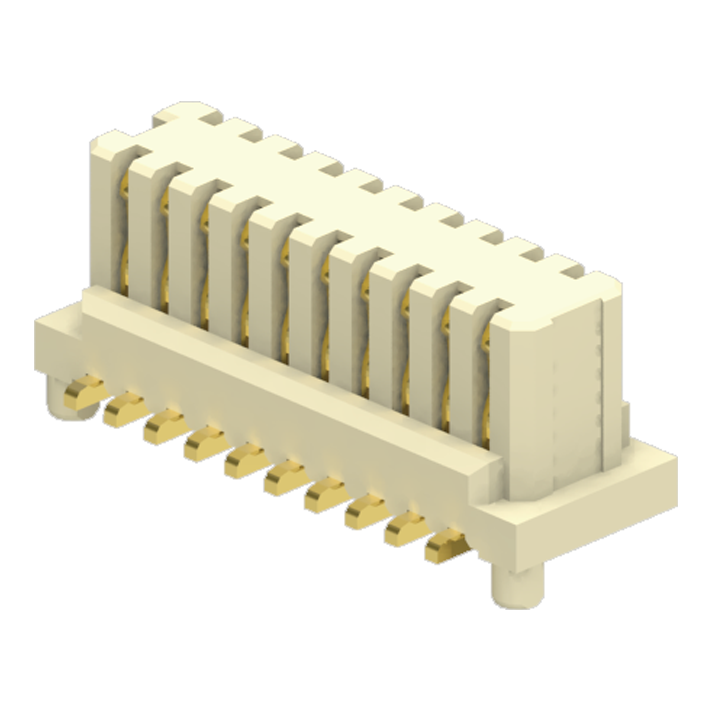

Board to Board 0.8mm Male H=3.55mm
Specification:
Current Rating: 0.5A
Contact Resistance: 30mΩ Max.
Insulator Resistance: 100MΩ Min.
Dielectric Voltage: 500V AC for one minute
Operating Temperature: -20° ~ +105°
Contact Resistance: 30mΩ Max.
Insulator Resistance: 100MΩ Min.
Dielectric Voltage: 500V AC for one minute
Operating Temperature: -20° ~ +105°
Material
Housing: Hi-Temp. Thermoplastic,UL94V-0
Contacts Pin: Phosphor Bronze
Contacts Pin: Phosphor Bronze
